316 316L 316 Ti Stainless Steel Seamless Round Pipe
Short Description:
Email: liu91284@gmail.com
Tel/WhatsApp: +86 18921370797
Material Grade: 316/316L/316Ti Stainless steel
Processing Service: Bending, Decoiling, Welding, Punching, Cutting
Standard: GB,ASTM,JIS,EN…
Nps: 1/8”~24”
Schedules: 5;10S;10;40S;40;80S;100;120;160;XXH
Length: 6 Meters or as request
Chemical Component of Ti Stainless Steel Seamless Round Pipe
|
GB |
ASTM |
JIS |
Chemical Component (%) |
|||||||||
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
N |
Other |
|||
|
0Cr17Ni12Mo2 |
316 |
SUS316 |
≦0.08 |
≦1.00 |
≦2.00 |
≦0.035 |
≦0.030 |
10.00-14.00 |
16.00-18.50 |
2.00-3.00 |
- |
- |
|
0Cr17Ni14Mo2 |
316L |
SUS316L |
≦0.03 |
≦1.00 |
≦2.00 |
≦0.035 |
≦0.030 |
12.00-15.00 |
16.00-18.00 |
2.00-3.00 |
|
|
|
0Cr18Ni12Mo2Ti |
316Ti S31635 |
SUS316Ti |
≦0.08 |
≦1.00 |
≦2.00 |
≦0.035 |
≦0.030 |
11.00-14.00 |
16.00-19.00 |
2.50-3.50 |
|
Ti5*C%-0.70 |
Outer Diameter: 6mm~720mm ; 1/8’’~36’’
Wall thickness: 0.89mm~60mm
Tolerance:+/-0.05~ +/-0.02
Technology
Drawing: Drawing the rolled blank through the die hole into a section to reduce the increase in length
Rolling: the blank is passed through the gap of a pair of rotating rollers. Due to the compression of the rollers, the material section is reduced and the length is increased. This is a common way to produce steel tubes
Forging: To change the blank into the desired shape and size by using the reciprocating impact force of the hammer or the pressure of the press
Extrusion: The blank is placed in a closed extrusion container with pressure applied at one end to extrude the blank from the specified die hole to obtain different shapes and sizes
Features of 316 stainless steel
316 stainless steel pipe is a kind of hollow round steel, which is widely used in petroleum, chemical industry, medical treatment, food, light industry, mechanical instrument, and other industrial conveying pipes and mechanical structural parts.In addition, in the same bending, torsional strength, and light weight, so also widely used in the manufacture of mechanical parts and engineering structures.It is also commonly used to produce all kinds of conventional weapons, barrels, shells, and so on.316L stainless steel pipe has excellent mechanical properties, corrosion resistance, and good weldability.In the oil and gas industry, Marine engineering, chemical industry, and other industries have a wide range of applications.316Ti stainless steel is added Ti to 316 stainless steel to improve the intercrystalline corrosion resistance.It is used to resist sulfuric acid, phosphoric acid, acetic acid, and acetic acid
Application of 316L Ti Stainless Steel Pipe
Oil&Gas;Food& Drug;Medical;Transportation;Construction…

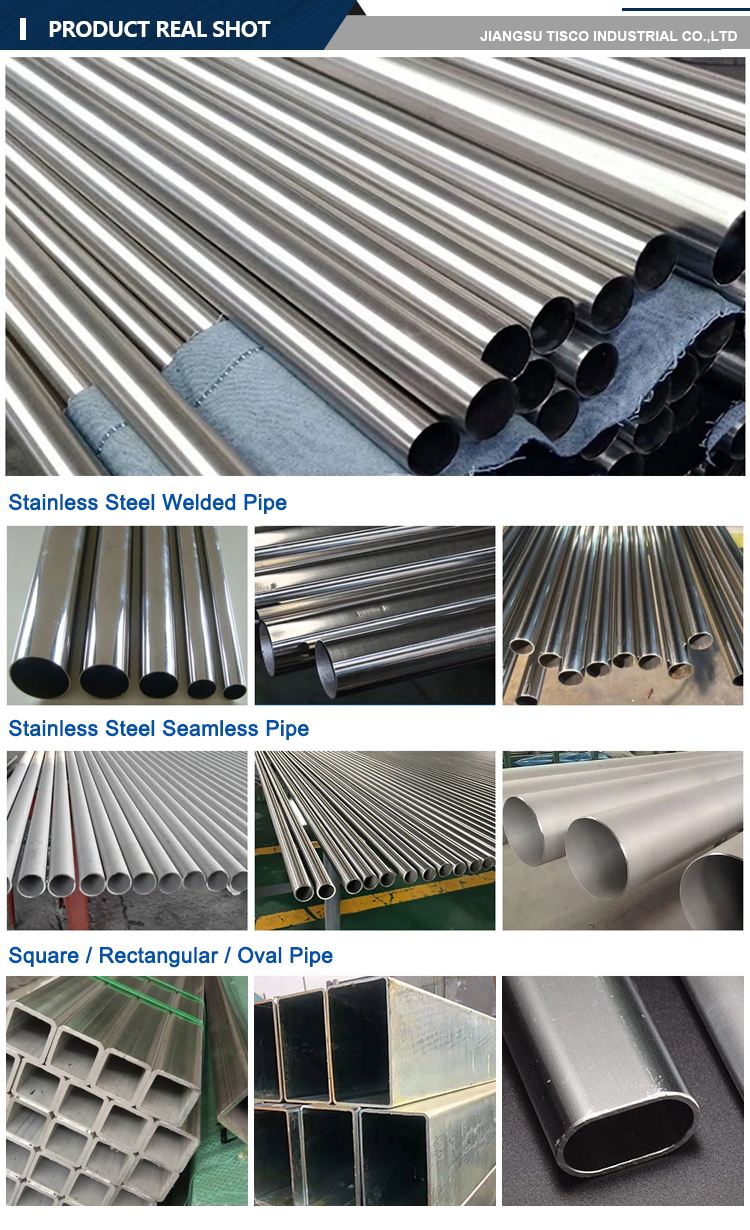

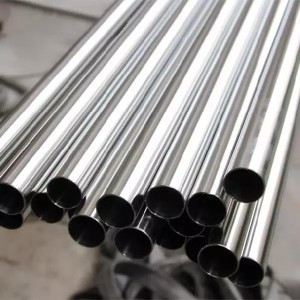

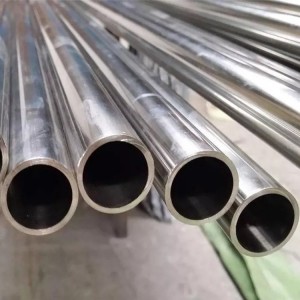

Image details of 316L Seamless Round Pipe

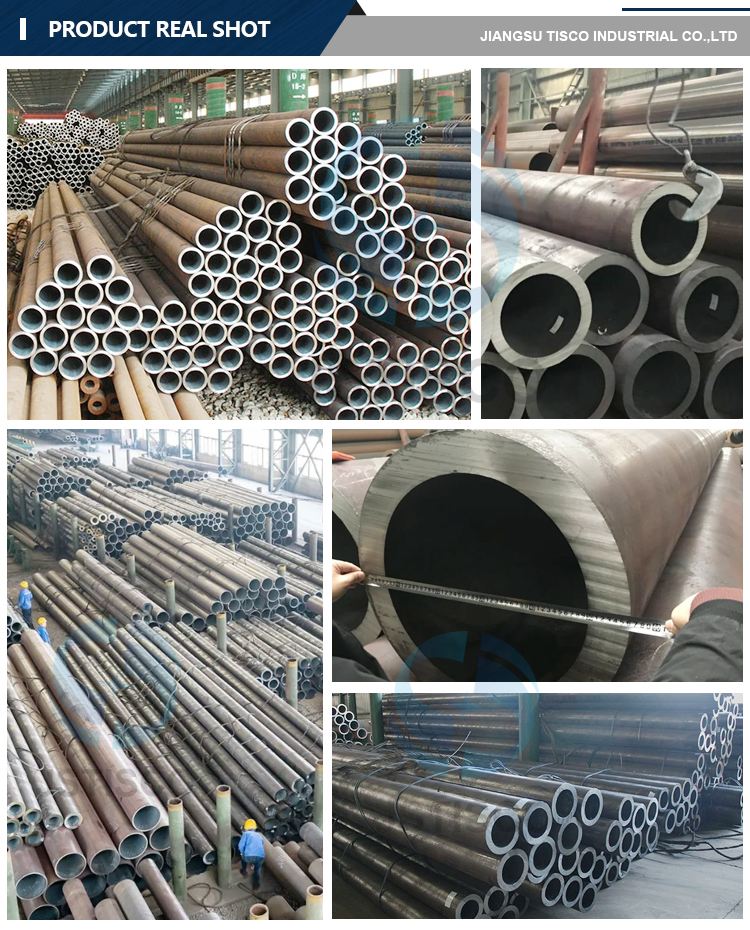

Factory Details of 316L Seamless Round Pipe
